Fluorine lined diaphragm valve

134-5173-9957

Service hotline

Product introduction

※ Product name：Fluorine lined diaphragm valve
※ Product model：G41F46-16C
※ Product specification：DN15-250
※ Shell material: carbon steel、304、316L
※ Lining material：FEP（F46）、PFA
First, Overview
The product uses a special process in the valve body lining PFA/FEP, diaphragm parts using PFA/FEP and EPDM, so that each part of the valve cavity to achieve the same corrosion performance. The product has good throttling characteristics, corrosion resistance and granular media, reliable sealing performance, can be widely used in a variety of corrosive fluids and fibrous, powdered media.
Second, product characteristics
The diaphragm separates the lower valve body cavity from the upper valve cover cavity, so that the stem, disc and other parts located above the diaphragm are not corroded by the medium.
Features: Diaphragm the lower valve body cavity and upper valve cover cavity separated, so that located above the diaphragm stem, valve disc and other parts are not corroded by the medium, omit the packing seal structure, and will not produce media leakage.

Product parameter

First, design standards

Design standard		HG/T3704,GB/T 12239			MSS-SF-88
Structural length		HG/T 3704,GB/T 12221			EN 558-1
Flange size		HG/T 20592,GB/T 9119.			ASME B16.5,JIS B2220
Inspection and test		GB/T 13927,JB/T 9092			API598
Nominal pressure（MPa）		0.6	1.0	1.6	150LB
Experimental pressure （MPa）	Shell pressure test	0.9	1.5	1.5	1.5
	High pressure seal	0.66	1.1	1.1	1.1
	Low pressure seal	0.6	0.6	0.6	0.6
Applicable temperature(°C)		PFA:-30~200 FEP:-30~150 GXPO:-10~80
Applicable medium		Hydrochloric acid, nitric acid, hydrofluoric acid, liquid chlorine, sulfuric acid, aqua regia and other strong corrosive media

Note: The pressure test and seal of the fluorine lined valve housing are tested according to the above table, and refer only to the test standard of general valves.

Basic model
manual	G41F4(Weir type)	pneumatic	G641G4 （reciprocating）
	G41F46（Weir type）		G641F46 （reciprocating）
	G45F4 （Straight flow ）		G6B45F4 （Normally closed）
electric	G45F46 （Straight flow）	electric	G6B45F４６（Normally closed）
	G9B41F4（Explosion-proof type）		G945F4（Ordinary form）
	G9B41F46（Explosion-proof type）		G945F46（Ordinary form）

Second, the main parts of the material table

Part name	Investment cast ductile iron	Carbon steel	Stainless steel
Part name	QT	C	P	R	PL	RL
Body, cover, disc	QT400	WCB	CF8	CF8M	CF3	CF3M
Valve stem	2Cr13	2Cr13	CF8	CF8M	CF3	CF3M
Lining layer	FEP(F46)、PTFE（F4）、PFA(soluble polytetrafluoroethylene), PO(polyolefin), PE(ultra-high molecular weight polyethylene)
diaphragm	ZcuA110Fe3
Stem nut	FEP(F46)、CR (Neoprene rubber), PFA(soluble polytetrafluoroethylene), FPDM(ethylene propylene rubber)
bolt	35	35	1Cr17Ni2	1Cr17Ni2	1Cr18Ni9	1Cr18Ni9
nut	45	45	0Cr18Ni9	0Cr18Ni9	0Cr18Ni9	0Cr18Ni9
Hand wheel	A3

Third, product advantages
Product connector less, the overall rigidity is good.
◆ Fast cut-off speed.
◆ Opening limit is convenient, flexible and accurate.
The overall structure of the valve body is relatively small, easy to install and maintain.
The valve body and valve disc surface is lined with fluorine plastic, completely isolate the medium and steel contact, avoid the valve body corrosion.

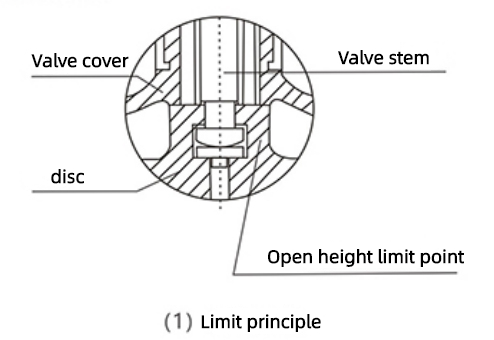

Fourth, structural characteristics

Fifth, matters needing attention
The operating temperature is not allowed to exceed the specified range.
◆ The medium is not allowed to have hard particles, so as not to crush the sealing surface and affect the valve seal.
The diaphragm lifting frequency should not be too much to avoid damaging the diaphragm affecting the sealing performance.

Sixth, pressure temperature curve

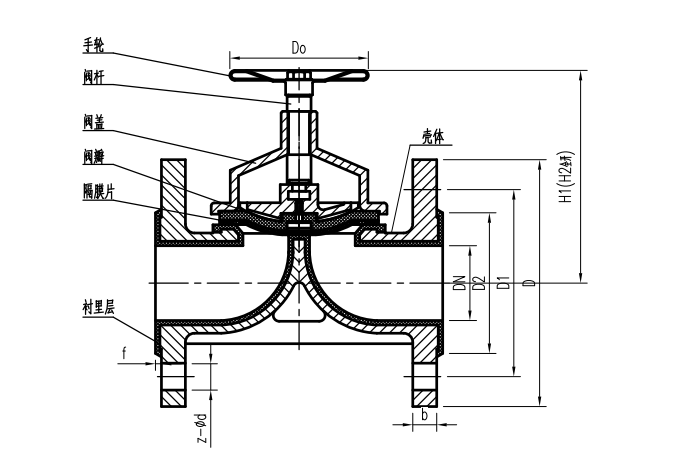

Seventh, the main connection size

1、0.6MPa连接尺寸

公称直径		标准值							参考值
DN mm	NPS (inch)	L	D	D1	D2	f	b	N-Фd	Do	H1	H2	W(kg)
DN mm	NPS (inch)	PN 0.6 (MPa)
15	1/2	125/108	80	55	40	2	12	4-Ф12	100	105	110	3.5
20	3/4	135/117	90	65	50	2	14	4-Ф12	100	115	125	4
25	1	145/127	100	75	60	2	14	4-Ф12	120	120	135	5.5
32	11/4	160/146	120	90	70	2	16	4-Ф14	120	125	150	8
40	11/2	180/159	130	100	80	3	16	4-Ф14	140	135	175	11
50	2	210/190	140	110	90	3	16	4-Ф14	140	155	195	14
65	21/2	250/216	160	130	110	3	16	4-Ф14	200	170	200	23
80	3	300/254	185	150	125	3	18	4-Ф18	200	200	255	29
100	4	350/305	205	170	145	3	18	4-Ф18	280	270	325	46
125	5	400/356	235	200	175	3	20	8-Ф18	320	335	405	70
150	6	460/406	260	225	200	3	20	8-Ф18	320	370	450	95
200	8	570/521	315	280	255	3	22	8-Ф18	400	480	600	170
250	10	680/635	370	335	310	3	24	12-Ф18	500	545	620	270
300	12	790/749	435	395	362	4	24	12-Ф23	500	585	680	320

2、1.0MPa连接尺寸

公称直径		标准值							参考值
DN mm	NPS (inch)	L	D	D1	D2	f	b	N-Фd	Do	H1	H2	W(kg)
DN mm	NPS (inch)	PN 1.0 (MPa)
15	1/2	125/108	95	65	45	2	14	4-Ф14	100	105	110	3.5
20	3/4	135/117	105	75	55	2	16	4-Ф14	100	115	125	4
25	1	145/127	115	85	65	2	16	4-Ф14	120	120	135	5.5
32	11/4	160/146	135	100	78	2	18	4-Ф18	120	125	150	8
40	11/2	180/159	145	110	85	3	18	4-Ф18	140	135	175	11
50	2	210/190	160	125	100	3	20	4-Ф18	140	155	195	14
65	21/2	250/216	180	145	120	3	20	8-Ф18	200	170	200	23
80	3	300/254	195	160	135	3	22	8-Ф18	200	200	255	29
100	4	350/305	215	180	155	3	22	8-Ф18	280	270	325	46
125	5	400/356	245	210	185	3	24	8-Ф18	320	335	405	70
150	6	460/406	280	240	210	3	24	8-Ф23	320	370	450	95
200	8	570/521	335	295	265	3	26	8-Ф23	400	480	600	170
250	10	680/635	390	350	320	3	28	12-Ф23	500	545	620	270
300	12	790/749	440	400	368	4	28	12-Ф23	500	585	680	320

3、1.6MPa Connection size

Nominal diameter		Standard value							Reference value
DN mm	NPS (inch)	L	D	D1	D2	f	b	N-Фd	Do	H1	H2	W(kg)
DN mm	NPS (inch)	PN 1.6 (MPa)
15	1/2	130	95	65	45	2	14	4-Ф14	120	115	115	4
20	3/4	150	105	75	55	2	16	4-Ф14	120	130	130	5
25	1	160	115	85	65	2	16	4-Ф14	140	140	140	6
32	11/4	180	135	100	78	2	18	4-Ф18	140	155	155	9
40	11/2	200	145	110	85	3	18	4-Ф18	160	180	180	12
50	2	230	160	125	100	3	20	4-Ф18	160	200	200	15
65	21/2	290	180	145	120	3	20	8-Ф18	200	205	205	24
80	3	310	195	160	135	3	22	8-Ф18	200	260	260	30
100	4	350	215	180	155	3	24	8-Ф18	280	330	330	48
125	5	400	245	210	185	3	26	8-Ф18	320	410	410	75
150	6	480	280	240	210	3	28	8-Ф23	320	460	460	105
200	8	600	335	295	265	3	30	12-Ф23	400	605	605	182
250	10	730	405	355	320	3	32	12-Ф25	500	625	625	295
300	12	850	460	410	375	4	34	12-Ф25	500	685	685	345

Eighth, G41F fluorine lined diaphragm valve ordering instructions:
1. Fluorine-lined diaphragm valve product name;
2. Fluorine lined diaphragm valve product model;
3. Fluorine lined diaphragm valve product caliber;
4. Diaphragm valve using medium;
5. Diaphragm valve operating temperature;
6. Diaphragm valve drive mode;
7 diaphragm valve nominal pressure;
If there is any special requirement, please indicate it when ordering the product.
9. If the model has been selected by the designer, please order directly from our sales department according to the model.
