Fluorine backed swing check valve H44

134-5173-9957

Service hotline

Product introduction

※ Product name: Fluorine lined swing check valve
※ Product model：H44F46-16C
※ Product specification：DN15-200
※ Shell material: carbon steel、304、316L
※ Lining material：FEP（F46）、PFA
First, product characteristics
Fluorine lined check valve (also known as check valve) the role of this type of valve is to allow the medium to flow in only one direction, and to prevent the direction of flow.
Second, the working principle
Lining check valve only allows media to flow in one direction and prevents fluid backflow. Usually, this valve works automatically, under pressure in one direction, valve disc opens, fluid flows in the opposite direction when fluid pressure and valve disc, PTFE valve ball weight, hand seat to cut off flow.

Product parameter

First, the main parts of the material table

Part name	Investment cast ductile iron	Carbon steel	Stainless steel
Part name	QT	C	P	R	PL	RL
Body, cover, disc	QT400	WCB	CF8	CF 8M	CF3	CF3M
Lining material	FEP(F46)、PTFE（F4）、PFA(Soluble teflon)、PO(polyolefin)、PE(Ultrahigh molecular weight polyethylene)
bolt	35	35	1Cr17Ni2	1Cr17Ni2	1Cr18Ni9	1Cr18Ni9
nut	45	45	0Cr18Ni9	0Cr18Ni9	0Cr18Ni9	0Cr18Ni9

Technical standard
Design and manufacture	GB/T12235 GB/T12236
Structural length	HG/T3704-2003 GB12221ASME B16.10
Flange size	GB/T9113.1、ANSI B16.5a
Structural form	Lift vertical, rotary, lift straight through
Nominal pressure	0.6、1.0、1.6、2.5MpaClass150 JIS 10K
Pressure test	GB/T13927-92API598

Basic model
H41F4	H42F4	H441F4
H41F46	H42F46	H44F46
H41PFA	H42PFA	H44PFA

Second, pressure temperature curve

Third, the material list

Nominal diameter		DN15-DN400
pressure		1.0Mpa 1.6Mpa 150LB
number	name	Material details
1	Body, disc, cover	A216WCB+Lining material	A351 CFB/A351 CF8M+Lining material	A351 CF3/A351CF3M+Lining material
2	ball	PTFE
3	Lining material	FEP PFA GXPO
4	bolt	A193 B7	A320 B8	A193 B8M

Fourth, technical performance specification

Design standard		HG/T 3704 GB/T 12235		AP16D
Structural length		HG/T 3704 GB/T 12221		ASME B16.10
Flange size		HG/T 20592 GB/T 9119		ASME B16.5 JIS B2220
Inspection and test		GB/T 13927 JB/T 9092		API 598
Nominal pressure（MPa）		1.0	1.6	150LB
Experimental pressure （MPa）	Shell pressure test	1.5	1.5	1.5
	High pressure seal	1.1	1.1	1.1
	Low pressure seal	0.6	0.6	0.6
Applicable temperature ℃		PFA -30~200 FEP -30~150 GXPO -10~80
Applicable medium		Hydrochloric acid, nitric acid, hydrofluoric acid, liquid chlorine, sulfuric acid, aqua regia and other strong corrosive media

Note: The pressure test and tightness of the fluorine lined valve shell are tested according to the data in the above table. The test standard is only for reference to the general valve standard. The high pressure requirements are customized and processed.

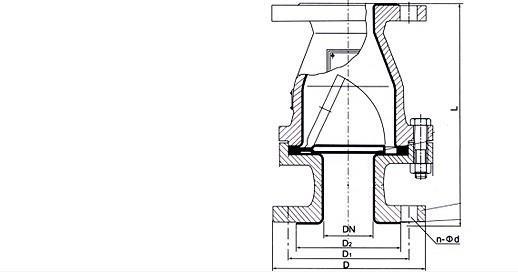

Fluorine lined GB swing check valve

HG/T 20592 PN10 unit：mm

DN	L1	L2	D	D1	D2	n-d	f	b	H	Wt(Kg)
15	/	130	95	65	45	4-14	2	14	85	6.5
20	/	150	105	78	55	4-14	2	14	82	5
25	/	160	115	85	65	4-14	2	14	98	6
32	/	180	140	100	78	4-18	3	16	110	7.5
40	/	200	150	110	85	4-18	3	16	118	9,5
50	43	230	165	125	100	4-18	3	16	118	9.5
65	46	290	185	145	120	4-18	3	18	138	13
80	46	310	200	160	135	4-18	3	20	160	27
100	52	350	220	180	155	8-18	3	24	185	35
125	56	400	250	210	185	8-18	3	26	208	56
150	56	480	285	240	210	8-23	3	24	245	75
200	60	495	340	295	265	8-23	3	26	298	118
250	68	550	395	350	320	12-23	4	28	342	165
300	78	698	445	400	368	12-23	4	28		210
350	78	787	505	460	428	16-23	5	28

HG/T 20592 PN16

DN	L1	L2	D	D1	D2	n-d	f	b	H	Wt(Kg)
15	/	130	95	65	45	4-14	2	14	82	4
20	/	150	105	75	55	4-14	2	14	82	5
25	/	160	115	85	65	4-14	2	14	98	6
32	/	180	140	100	78	4-18	3	16	110	7.5
40	/	200	150	110	85	4-18	3	16	118	9.5
50	43	230	165	125	100	4-18	3	16	138	13
65	46	290	185	145	120	4-18	3	18	156	19.5
80	46	310	200	160	135	8-18	3	20	160	27
100	52	350	220	180	155	8-18	3	20	185	35
125	56	400	250	210	185	8-18	3	22	208	56
150	56	480	285	240	210	8-23	3	24	245	75
200	60	495	340	295	265	12-23	3	26	298	118
250	68	550	405	355	320	12-25	4	28	342	165
300	78	698	460	410	375	12-25	4	29
350	78	787	520	470	435	16-25	5	34

Fluoro-american standard swing check valve

HG/T 20592 PN25 unit：mm

DN	L1	L2	D	D1	D2	n-d	f	b	H	Wt(Kg)
15	/	130	95	65	45	4-14	2	16	82	6.5
20	/	150	105	75	55	4-14	2	16	82	7
25	/	160	115	85	65	4-14	2	16	98	8
32	/	180	140	100	78	4-18	3	18	110	11
40	/	200	150	110	85	4-18	3	18	118	15
50	43	230	165	125	100	4-18	3	20	118	17.5
65	46	290	185	145	120	8-18	3	22	138	26
80	46	310	200	160	135	8-18	3	22	160	36
100	52	350	230	190	160	8-23	3	24	185	44
125	56	400	2700	220	188	8-25	3	28	208	60
150	56	480	300	250	218	8-25	3	30	245	81
200	60	495	360	310	278	12-25	3	34	298	137
250	68	550	425	370	332	12-30	4	36	342	179
300	78	698	485	410	375	16-30	4	39
350	78	787	550	490	448	16-34	5	44

ASME B16.5 Class150

DN	L1	L2	D	D1	D2	n-d	f	b	H	Wt(Kg)
1/2	/	130	89	60.5	35	4-16	2	12	82	4
3/4	/	150	98	70.0	43	4-16	2	12	82	5
1	/	160	108	79.5	51	4-16	2	12	98	6
11/4	/	180	117	89.0	64	4-16	2	13	110	7.5
11/2	/	200	127	98.5	73	4-16	2	15	118	9.5
2	43	230	152	120.5	92	4-19	2	16	138	13
21/2	46	290	178	139.5	105	4-19	2	18	156	19.5
3	46	310	190	152.5	127	4-19	2	19	160	27
4	52	350	229	190.5	157	8-19	2	24	185	35
5	56	400	254	216.0	186	8-22	3	24	208	56
6	56	480	279	241.5	216	8-22	3	26	245	75
8	60	495	343	298.5	270	8-22	3	29	298	118
10	68	550	406	362.0	324	12-25	3	31	342	165
12	78	698	482.6	431.8	381	12-25	4	34.7		205
14	78	787	533.4	476.2	412.7	12-29	5	39		255
