※ Product name：Fluorine lined (straight flow) globe valve
※ Product model：J45F46-16
※ Design standard:GB/T 12233
※ Structural length:GB/T 12221
※ Flange standard:HG 20592-2009
※ Inspection test:JB/T 9092-99
※ Driving mode: manual, electric, pneumatic, gear
First, product overview
The opening and closing of the J45 straight-flow fluorine lined stop valve is achieved by rotating the handwheel to make the stem move axially and drive the valve disc to rise and fall. The disc drops when the hand wheel rotates clockwise. Dc fluorine lined stop valve in the pipeline is mainly used to connect or cut off the medium in the pipeline, but can not be used for throttling.
The surface of the valve body cavity and the surface of the valve cover, disc, stem and other parts in contact with the medium are lined with polyfluoroethylene propylene plastic. Therefore, it has the best corrosion resistance. Suitable for a variety of concentrations of hydrochloric acid, sulfuric acid, hydrofluoric acid and aqua roya, nitric acid, various organic acids, strong alkali, strong oxidant or dilute alternations, acid-base alternations, a variety of organic concentrated agents and other strong erosive media.
FEP(F46), PCTFE(F3) lined fluorine DC cut-off valve is suitable for all kinds of concentrations of aqua king, sulfuric acid, hydrochloric acid, hydrofluoric acid and various organic acids, strong acids, strong oxidants, FEP is also suitable for all kinds of concentrations of strong alkali organic solvents and other corrosive gases, liquid media pipeline use.
Second, the basic structure of J45 straight flow lined fluorine globe valve
1, fluorine plastic lining J41F46 straight through type, J45F46 straight flow lined fluorine globe valve, J44F46 Angle globe valve, with compact structure, flexible opening and closing, strong corrosion resistance, short stroke (generally nominal diameter 1/4) and other advantages, is widely used in petroleum, chemical and other piping system to do truncation medium. But it needs to be emphasized that the fluorine plastic lined globe valve is strictly prohibited to be used for flow regulation, so as not to destroy the sealing surface by the high speed medium flow erosion generated at the throttle outlet.
2, disc and stem design as a whole structure, to prevent the possibility of internal parts out of the valve body due to pipeline pressure fluctuations, compact structure, safe use.

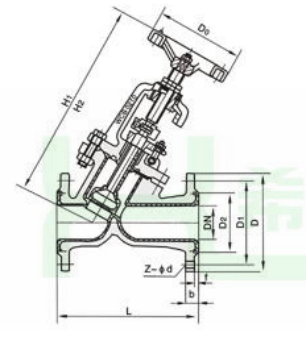

First, the main connection size

Nominal diameter		Standard value
DN(mm)	NPS(inch)	L	D	D1	D2	f	b	N-Фd	D0	H1	H2	WT(kg)
		PN1.0MPa
15	1/2	130	95	65	45	2	14	4-Ф14	100	165	180	6.5
20	3/4	150	105	75	55	2	16	4-Ф14	100	195	215	7
25	1	160	115	85	65	2	16	4-Ф14	120	210	235	7.8
32	11/4	180	135	100	78	2	18	4-Ф18	140	215	245	11
40	11/2	200	145	110	85	3	18	4-Ф18	140	260	295	13
50	2	230	160	125	100	3	20	4-Ф18	160	300	345	15
65	21/2	290	180	145	120	3	20	4-Ф18	180	320	380	23
80	3	310	195	160	135	3	22	4-Ф18	240	390	465	38
100	4	350	215	180	155	3	22	8-Ф18	240	450	540	42
125	5	400	245	210	185	3	24	8-Ф18	280	460	570	55
150	6	480	380	240	210	3	24	8-Ф23	320	530	665	77
200	8	600	335	295	265	3	26	8-Ф23	360	600	790	135
250	10	730	390	350	320	3	28	12-Ф23	400	720	940	220

Second, order instructions
1. Product name;
2. Product model;
3. Caliber of product;
4. Use media;
5. Use temperature;
6. Driving mode;
7. Nominal pressure;
8. Product materials;
9. Whether to bring accessories for your correct selection;
10. If there is any special requirement, please indicate it when ordering the product.
